Intelligent Manhole Cover

Product Introduction

Overview

Intelligent manhole covers are capable of monitoring the condition of underground equipment and manhole covers, issuing early warnings, remotely monitoring real-time underground water level data and safety status of drainage network inspection manholes, and reporting to the monitoring center. This enables supervisory personnel to gain a comprehensive understanding of drainage network operations, effectively identify clogged pipe sections, promptly detect abnormalities in manhole covers, and take appropriate actions. They are essential devices in various smart pipe network management systems as they address challenges related to humid and waterlogged underground monitoring environments, power supply difficulties, and poor communication.

• The solar power supply system is integrated into the surface of the manhole cover, eliminating the need for battery replacement

• The antenna is embedded on the exterior of the manhole cover, addressing communication challenges in underground environments

Application

Manholes are present in major urban thoroughfares, residential areas, sidewalks, non-motorized lanes, and parking lots.

Product Composition

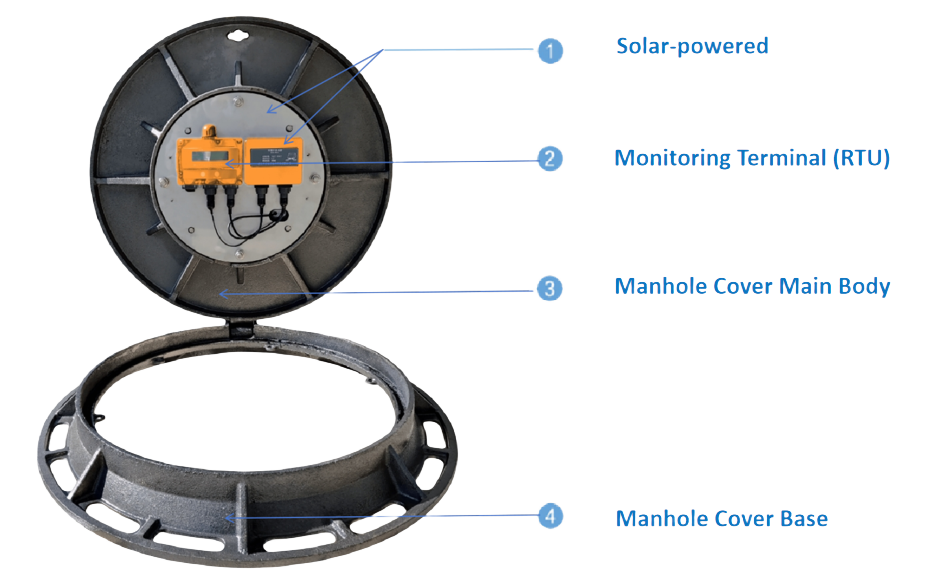

The main body of the manhole cover, its base, the embedded solar power supply system, and the monitoring terminal (RTU) can be connected to various types of sensors.

Features

• The surface of the manhole cover is embedded with a solar power supply system, which supports real-time monitoring without the need to replace batteries

• A 24W high-power solar panel is used to meet the needs of high-power applications

• The antenna is embedded on the outer side of the manhole cover, solving the problem of poor communication in the well

• GPS positioning function for easy navigation to the location of the manhole cover

• Manhole cover safety monitoring, manhole cover theft alarm, and destruction alarm

• A variety of extension interfaces are available to meet the needs of different types of sensors

• Protection level IP68, not afraid of the moisture and water immersion of the manhole

• Remote/local parameters can be set
